Description:
The set of babbit nozzles is designed for use with DYMET babbit metal powders. It provides a deposition of babbit B83 on the surfaces of sliding bearings. It can also be used to repair defects (frictional damage, scratches, bumps, etc) in previously deposited layers.

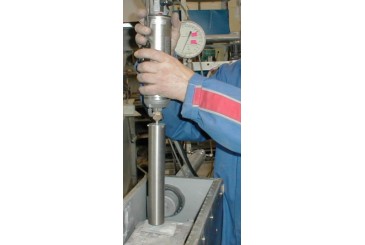

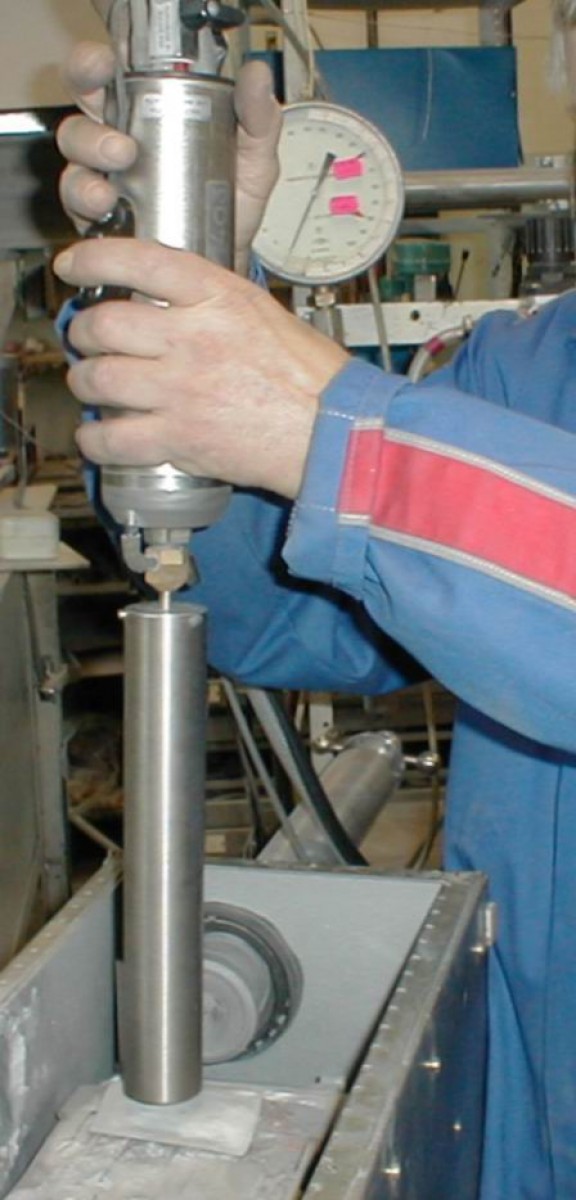

The set of babbit nozzles is intended to spray a fine babbit powder to metal substrate by the equipment DYMET model 412К, 413, 423. It provides a deposition of babbit B83 on the surfaces of sliding bearings. It can also be used to repair defects (frictional damage, scratches, bumps, etc) in previously deposited layers.
The special elongation inserts are used with DYMET equipment using supersonic nozzle CK20.
Babbit metal particles are accelerated in the nozzle and melt upon impacting the substrate. This ensures a strong bond between the deposited layer and the substrate.

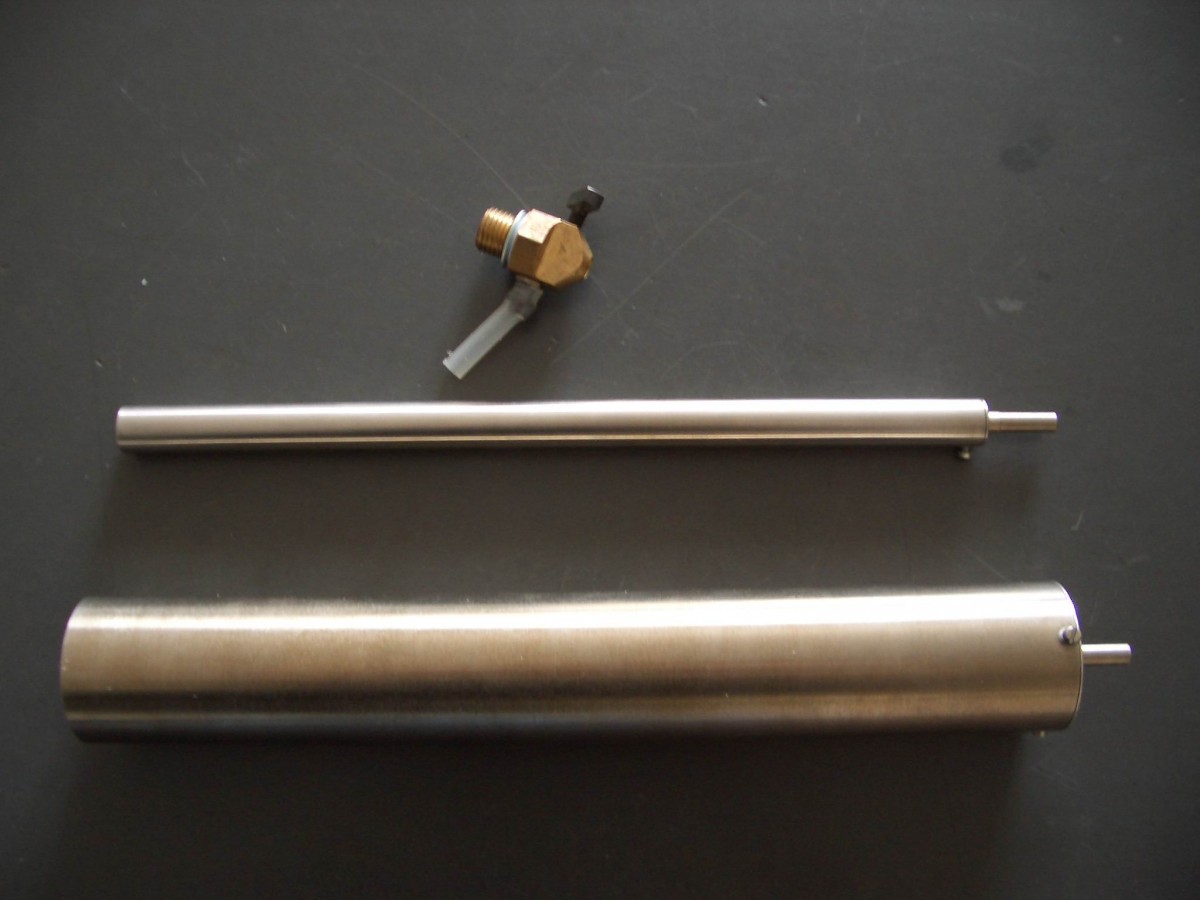

Parts list:
The nozzle CK20 with elongation insert БКК-35 produces the spray spot of 40 millimeters diameter and is used to spray babbit coatings at the surfaces areas above 15 cm2.
The nozzle CK20 with elongation insert БКЦ-8 produces the spray spot of about 10 millimeters diameter and is used to repair point and line defects at the existing babbit coatings.
